AUTOMOTIVEID 406231

Liquid Cooled Heatsink

Submitted by

  • Additive Companion
    Additive Companion
Industry
Automotive
Year
2020
Country
Italy

Summary

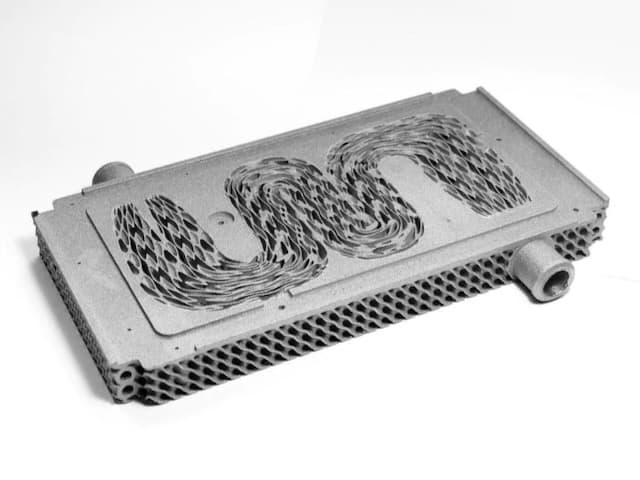

A 25% lighter liquid-cooled heat sink with flow guides that increase the heat transfer surface area by 300%.

Project Gallery

Technology Details

Printer Technology
DMLS
Printer Category
Powder Bed Fusion
Material
Aluminium
Material Type
Aluminium
Feedstock Form
Powder
Finishing
Sand Blasted

Process Steps

Printer category: Powder Bed Fusion

  1. 1
    Step 1Design
    CAD Design Type
    Generative
    CAD Software Type
    Implicit Modelling
    Design Software
    • nTopology
  2. 2
    Step 2Printing
    Technology
    DMLS
    Material
    Aluminium

Application Profile

Cost per Part

€€€€

€100–€499.99

Indicative single unit production cost at time of manufacture.

Complexity

Complex

Requires specialised knowledge and deeper analysis.

Project Scale

Full Production

Product Type

Component

Project Field

Industrial

Sustainability Rating

★★☆

Can depend on fossil fuels and high energy use, but allows unconsumed material to be directly reused for printing without reprocessing, significantly reducing manufacturing waste. This rating relates to the technology type only. The design, purpose and longevity of the entire object can offset any of the technology type's negative sustainability credentials.

Software

nTopology

CAD Design Type

Generative

CAD Software Type

Implicit Modelling

User Level

Professional

Key Advantages

Complex Geometry

Points of Interest

Internal Channels
