Gas Turbine Emissions Rake
- Additive Companion
- Energy
- 2023
- United Kingdom
Summary

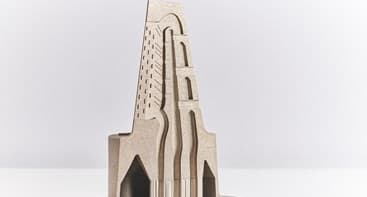

The implementation of Additive Manufacturing (AM) has resulted in the creation of an aerodynamic sensor housing featuring a complex internal structure. It also consolidates over 12 individual parts into a single component, thereby reducing the number of inspections required. This application of AM has not only enhanced efficiency but also streamlined the manufacturing process.
Project Gallery
Technology Details
- DMLS
- Powder Bed Fusion
- Inconel Alloy
- Inconel Alloy
- Powder
- Sand Blasted
Process Steps
Printer category: Powder Bed Fusion
- 1
Step 1Design
- Design Software
- Fusion 360 (with Netfabb)
- 2
Step 2Printing
- Technology
- Material
Application Profile
€€€€€
€500 plus
Indicative single unit production cost at time of manufacture.
Highly Complex
Demands advanced, expert-level skill and deep technical expertise.
Component
Industrial
★★☆
Can depend on fossil fuels and high energy use, but allows unconsumed material to be directly reused for printing without reprocessing, significantly reducing manufacturing waste. This rating relates to the technology type only. The design, purpose and longevity of the entire object can offset any of the technology type's negative sustainability credentials.
Fusion 360 (with Netfabb)
Professional
Internal Channels
Recognition
