SPORTID 702408

G Frames

3 views

Submitted by

  • Additive Companion
    Additive Companion

Designer / Owner

Industry
Sport
Year
2019
Country
United States

Summary

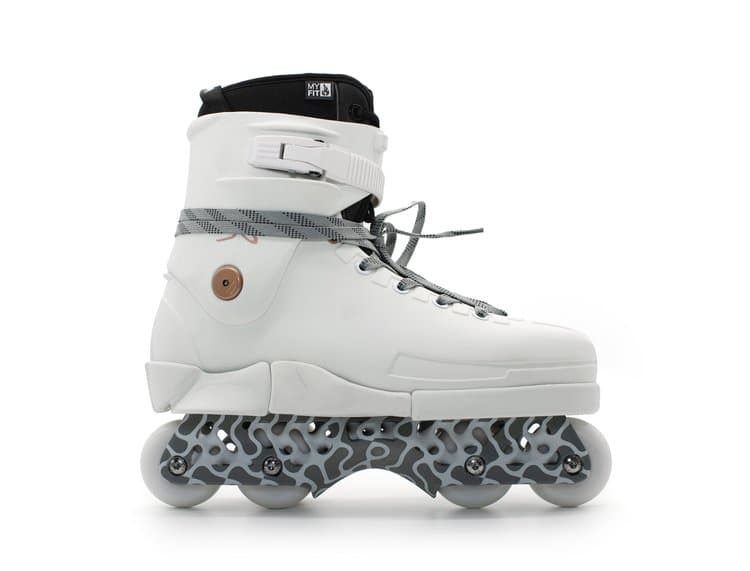

Utilising topology optimization for lightweighting and a design that can be mass-produced with additive manufacturing.

Project Gallery

Technology Details

Printer Technology
MJF
Printer Category
Binder Jetting
Material
Nylon PA12
Material Type
Nylon
Feedstock Form
Powder

Process Steps

Printer category: Binder Jetting

  1. 1
    Step 1Design
    CAD Design Type
    Generative
    CAD Software Type
    Implicit Modelling
    Design Software
    • nTopology
  2. 2
    Step 2Printing
    Technology
    MJF
    Material
    Nylon PA12

    Hardware Manufacturer

    Hidden until you sign in

    Create free account →

Application Profile

Cost per Part

€€€

€50–€99.99

Indicative single unit production cost at time of manufacture.

Complexity

Moderate

Requires basic problem-solving and routine skills.

Project Scale

Full Production

Product Type

Component

Project Field

Commercial

Sustainability Rating

★★☆

Can depend on fossil fuels and high energy use, but allows unconsumed material to be directly reused for printing without reprocessing, significantly reducing manufacturing waste. This rating relates to the technology type only. The design, purpose and longevity of the entire object can offset any of the technology type's negative sustainability credentials.

Software

nTopology

CAD Design Type

Generative

CAD Software Type

Implicit Modelling

User Level

Professional

Key Advantages

Complex Geometry

Points of Interest

Durability

Recognition

Press
