Foundation Reinforcement Formwork
- Additive Companion
- Construction
- 2024
- Netherlands
Summary

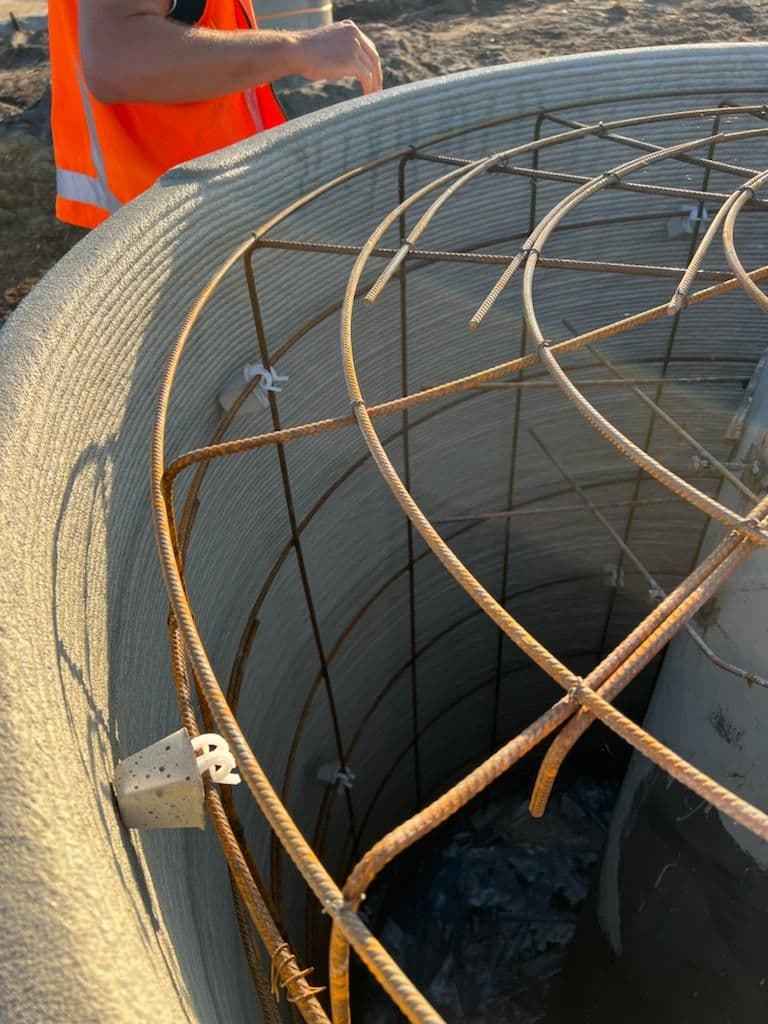

A total of 20 cylinders with a height of 2.1 meters and an internal diameter of 1.65 meters were printed off-site for the 5 masts and sawn into two halves, so that they can be placed around the existing mast footings, before inserting the steel reinforcement and pouring the concrete inside.
Project Gallery
Technology Details
- Paste Deposition
- Material Extrusion
- Concrete Mix
- Concrete
- Slurry
Process Steps
Printer category: Material Extrusion
- 1
Step 1Printing
- Technology
- Material
Application Profile
€€€€€
€500 plus
Indicative single unit production cost at time of manufacture.
Complex
Requires specialised knowledge and deeper analysis.
On Demand
Component
Industrial
★★☆
Can depend on fossil fuels and high energy use, but allows unconsumed material to be directly reused for printing without reprocessing, significantly reducing manufacturing waste. This rating relates to the technology type only. The design, purpose and longevity of the entire object can offset any of the technology type's negative sustainability credentials.
Professional
Moulding & Casting
