PRODUCT DESIGN AND ENGINEERINGID 203742

EEV Arrow

Submitted by

Additive Companion

Industry: Product Design and engineering
Year: 2021
Country: United States

Summary

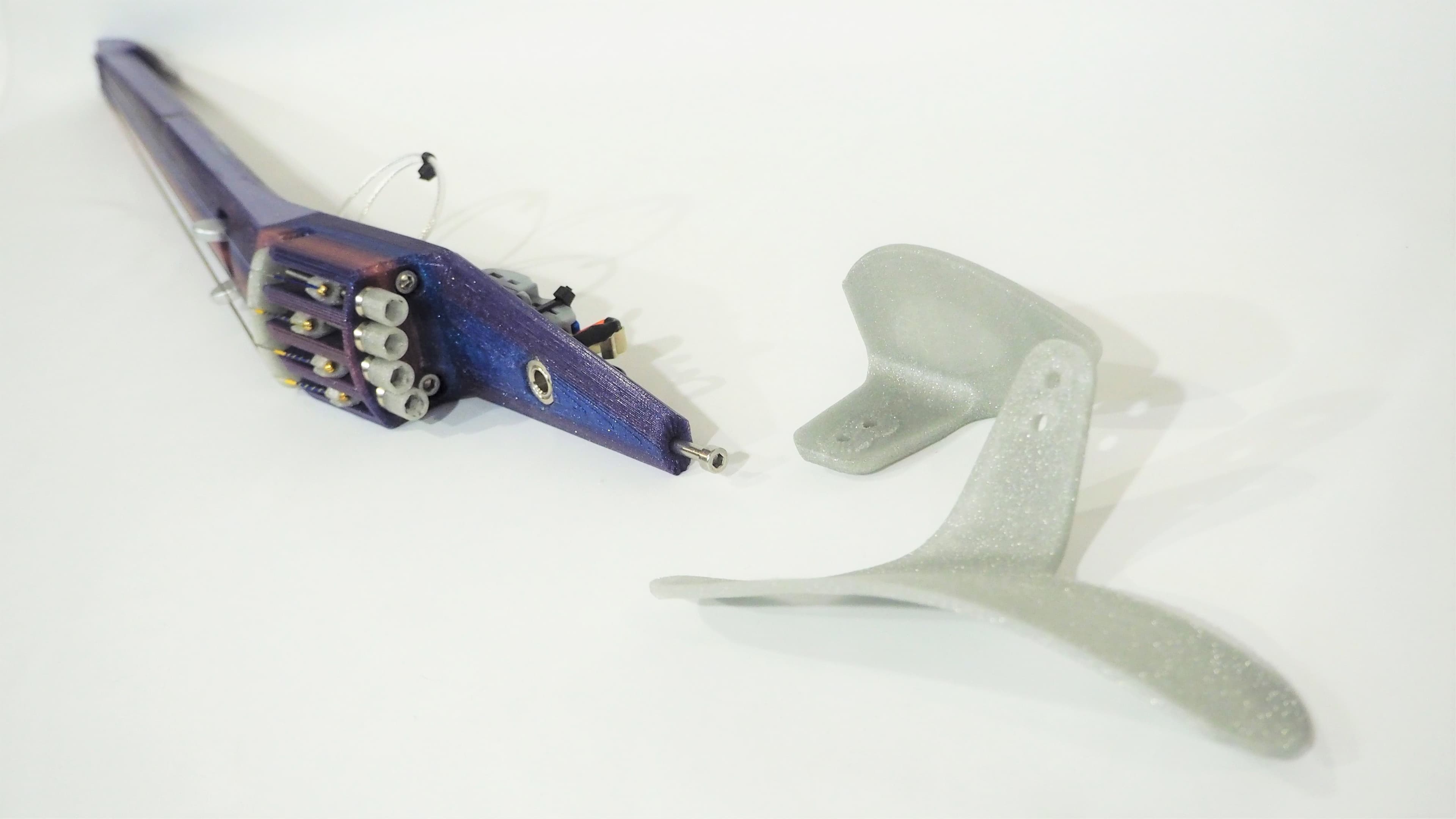

A 3D printed electric violin with custom barrel tuners.

Project Gallery

Technology Details

Printer Technology: FFF (Desktop)
Printer Category: Material Extrusion
Material: PLA
Material Type: PLA
Feedstock Form: Filament

Process Steps

Printer category: Material Extrusion

1
Step 1Design
CAD Design Type
Generative
CAD Software Type
Surface Modelling
Design Software
Fusion 360 (with Netfabb)
2
Step 2Printing
Technology
FFF (Desktop)
Material
PLA

Application Profile

Cost per Part

€€€€

€100–€499.99

Indicative single unit production cost at time of manufacture.

Complexity

Moderate

Requires basic problem-solving and routine skills.

Project Scale

On Demand

Product Type

Musical

Project Field

Commercial

Sustainability Rating

★☆☆

Can depend heavily on virgin fossil fuels, produce harmful emissions, and yield non-recyclable materials. Involves high energy consumption during material manufacturing. As an AM material, requires some re-processing after use. This rating relates to the technology type only. The design, purpose and longevity of the entire object can offset any of the technology type's negative sustainability credentials.

Software

Fusion 360 (with Netfabb)

CAD Design Type

Generative

CAD Software Type

Surface Modelling

User Level

Enthusiast

Key Advantages

Rapid Design Development

Points of Interest

Downloadable
