PRODUCT DESIGN AND ENGINEERINGID 552866

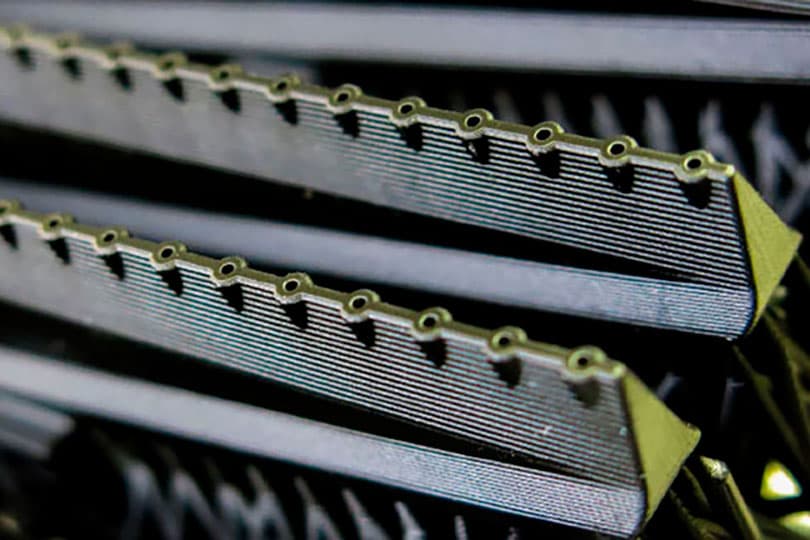

Airflow Distributor

Submitted by

Additive Companion

Industry: Product Design and engineering
Year: 2019
Country: Spain

Summary

Optimised internal geometry reduces the required air pressure by 27%

Project Gallery

Technology Details

Printer Technology: DLP
Printer Category: Vat Photopolymerisation
Material: Photopolymer Resin
Material Type: Resin
Feedstock Form: Liquid

Process Steps

Printer category: Vat Photopolymerisation

1
Step 1Design
CAD Design Type
Engineering
2
Step 2Printing
Technology
DLP
Material
Photopolymer Resin
Hardware Manufacturer
Hidden until you sign in
Create free account →

Application Profile

Cost per Part

€€€

€50–€99.99

Indicative single unit production cost at time of manufacture.

Complexity

Complex

Requires specialised knowledge and deeper analysis.

Project Scale

Full Production

Product Type

Component

Project Field

Industrial

Sustainability Rating

★☆☆

Can depend heavily on virgin fossil fuels, produce harmful emissions, and yield non-recyclable materials. Involves high energy consumption during material manufacturing. As an AM material, requires some re-processing after use. This rating relates to the technology type only. The design, purpose and longevity of the entire object can offset any of the technology type's negative sustainability credentials.

CAD Design Type

Engineering

User Level

Professional

Key Advantages

Complex Geometry

Points of Interest

Internal Channels

Recognition

Press

Providers Involved

Providers

PhotocentricHardware Manufacturer
